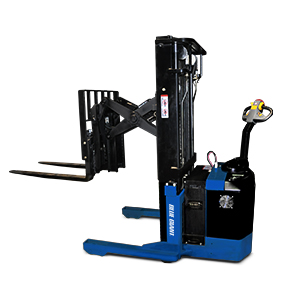

BGNR-30 Powered Walkie Reach Stacker


The fullest range of North American built material handling equipment at the best pricing and availability!  Ready, reliable and right on the money!

The BGNR-30 Powered Walkie Reach Stacker combines the tight maneuvering ability of a walkie straddle stacker with the operating flexibility of a counterbalanced truck.  A pantograph extends the handled loads beyond the straddle legs and can be retracted for compact turns and tight manuevering. Power steering, side shift, proportional hydraulics, and tilt all result in intuitive control and exceptionally versatile performance.


  • 3000lbs (1363kgs) at 24″ (610mm) load center


  • 106″ (2292mm)
  • 126″ (3200mm)
  • 157″ (3988mm)


  • Power steering for maximum control and efficiency
  • 24V AC drive motor
  • ZAPI programmable travel controller supports simple and precise truck positioning
  • Creep speed control allows for easier maneuvering at low speeds in tight places
  • Travel speed remains constant relative to throttle position regardless of the load
  • Regenerative neutral braking
  • Travel speed: 3.4mph (unloaded) and 3.1mph (under load)


  • Travel, lift, lower, and tilt functions are located in the ergonomic operator handle, which can be operated with either hand
  • Hand grips fit the operator’s hand comfortably, reducing fatigue


  • High-visibility I-beam mast with dual lifting chains
  • Pantograph stroke extends the fork carriage beyond the straddle legs
  • Integral tilt and sideshift
  • Fork size: 42″ (1067mm) standard
  • 3″ (76mm) straddles are fixed at either 34” ID/42”OD or 42” ID/50”OD.
  • 224 AH battery package (4-6 volt, maintenance-free AGM batteries), complete with automatic 25AMP / 110VAC plug-in internal charger
  • Integral tilt and sideshift
  • Heavy-duty two-piece head cover protects major components from impact damage


  • Warehouses
  • Storage facilities
  • Retail outlets
  • Beverage distribution
  • Frozen food storage
  • Pharmaceuticals
  • Chemical handling and processing facilities


  • 10″ (254mm) single load wheel
  • Straddle ID/OD of 34/43 or 42/50
  • ClearView polycarbonate mast guard
  • 224 AH AGM battery pack with 110V charger
  • 255 AH industrial battery with external charger

pdf_icon Brochure

pdf_icon Product Overview




Print Friendly, PDF & Email


Contact Our Sales Department

Product Description

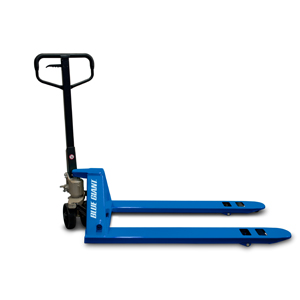

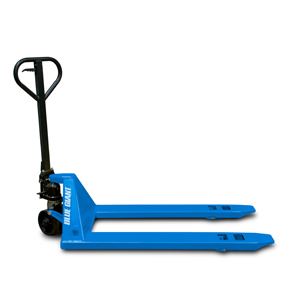

Blue Giant has a complete line of rugged and high-performing yet lightweight hand pallet trucks, all designed to exceed the demands of the toughest workplace environments.

Recognized for their reliability and durability, Blue Giant manual pallet trucks are used in busy facilities all over the world. Each compact model offers years of high productivity and a low cost of ownership.
